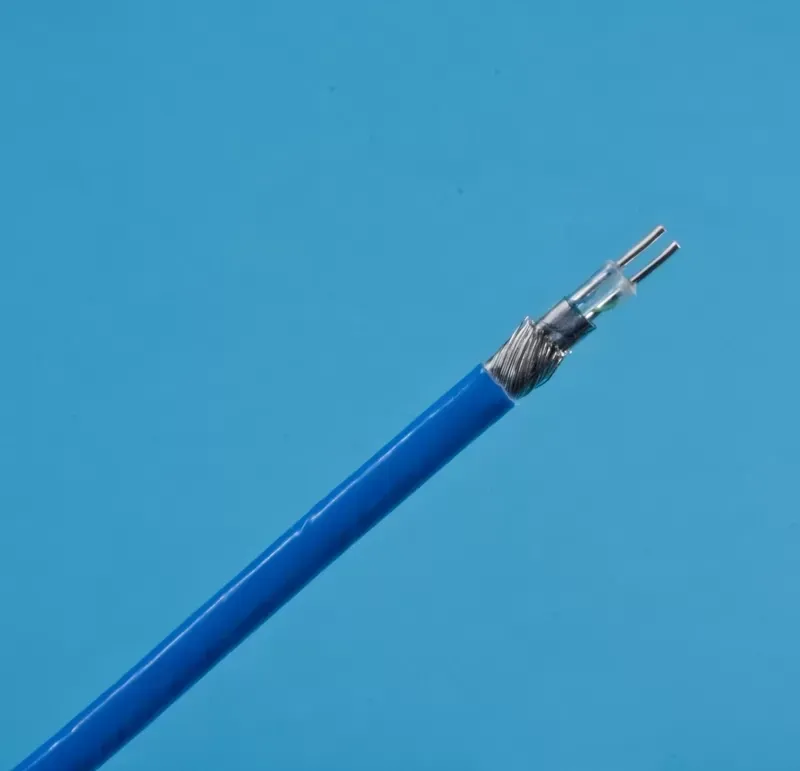

A close-up view of a blue, shielded electrical cable with two exposed metal wire conductors at the tip.

51 Type 100±5 Twinax

Specification


  • Impedance (Ohms): 100±5
  • Construction: Twinax
  • Shield: SPC Braid over Aluminum PP Foil
  • Jacket Material: FEP
  • Nominal O.D. (Inches): 0.098±0.003
  • Jacket Color: Blue
  • Conductor: Silver Plated Copper
  • Wire Size: 26 AWG Solid
  • Dielectric Insulator: Air Core
A red downward arrow pointing toward an Adobe PDF document icon.

Category: Cables
