Description
Description
Features and Benefits

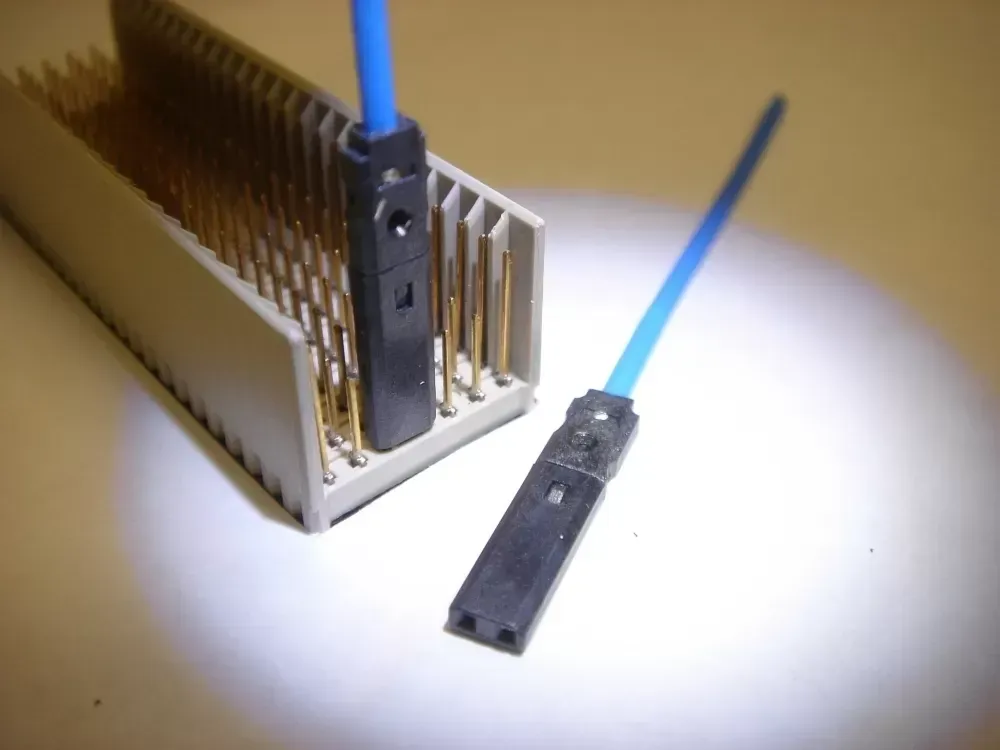

- Mates with .020″ by .020″ square headers and Hard Metric headers
- 350Mhz MAX Bandwidth when using coax
- Use with Coax or Hook Up wire for signals or power delivery
- Welded terminations
- Dual Shoulders provided for mechanical support hardware
- Beveled edges indicate signal/shielded orientation
Mechanical Specifications
- Contact Material – copper alloy
- Contact Finish – High Performance Au/Ni plating
- Insertion Force: 68 grams/contact average
- Withdrawal Force: 48 grams/contact average
- Dielectric Material High temp resin
- Pin Insertion Depth: .425″ MAX; .250″ MIN. Pins .125″ to .250″ can be used as long as the connector is held in place by additional support hardware
Electrical Specifications
- Contact Resistance: 2.7 milliohms average
- Current Rating: 1A per contact
- Insulation Resistance: >10 Gohms
Environmental Specifications
- Material: UL rated 94 V-0
- Temperature Rating – -20°C to +100°C
